Ag-Steel™ Kiwifruit Product Range

We offer systems that do exactly what they’re designed to do — supporting strong vine growth, protecting your orchard investment, and helping produce the premium kiwifruit New Zealand is known for.

The Ag-Steel™ range is manufactured in New Zealand using pre-galvanised GS310 tube, featuring a Z450 coating with external weld seam zinc repair to ensure coating continuity. With a smooth, consistent surface finish and excellent formability, it’s purpose-built for outdoor, corrosion-prone orchard environments where long-term durability truly matters.

When you choose Ag-Steel, you’re choosing more than a structure. You’re choosing a partner who understands what’s at stake — your land, your yields, and the future of your orchard.

Proudly New Zealand made. Gold-standard sustainably manufactured.

Gold Certification for Sustainability

View our AgSteel Kiwifruit product range

Kiwifruit Product Solutions

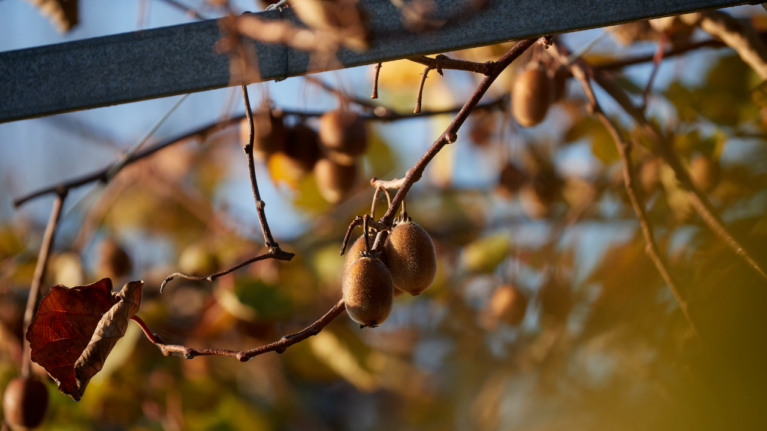

Ag-Beam™

Ag-Beam™

Ag-Brace

Ag-Brace

AgBrace is designed to work in conjunction with the AgBeam™ system to significantly increase bracing and load capacity in orchards with wide bays or side skirts. Custom-designed for New Zealand’s kiwifruit industry, AgBrace delivers added structural bracing and strength where it’s needed most, while remaining simple to install and retrofit.

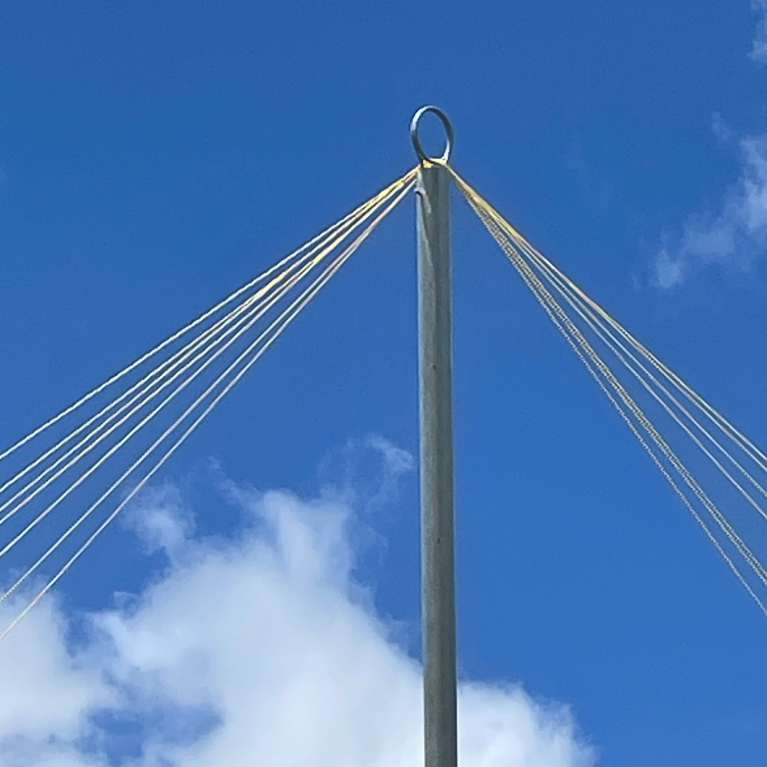

Ag-Stringing Poles

Ag-Stringing Poles

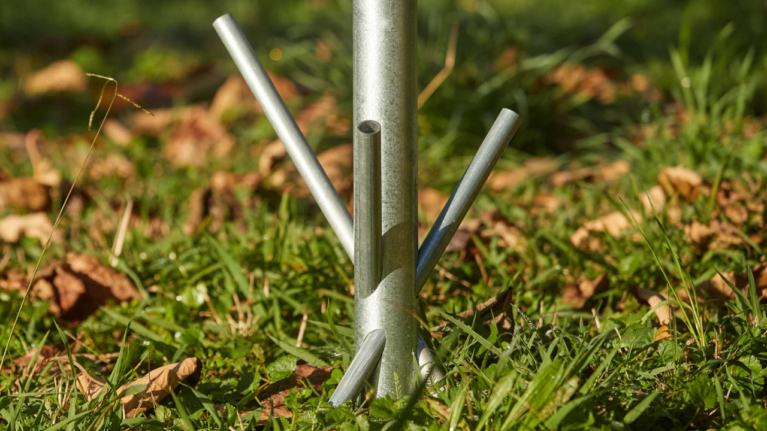

Ag-Tripost

Ag-Tripost

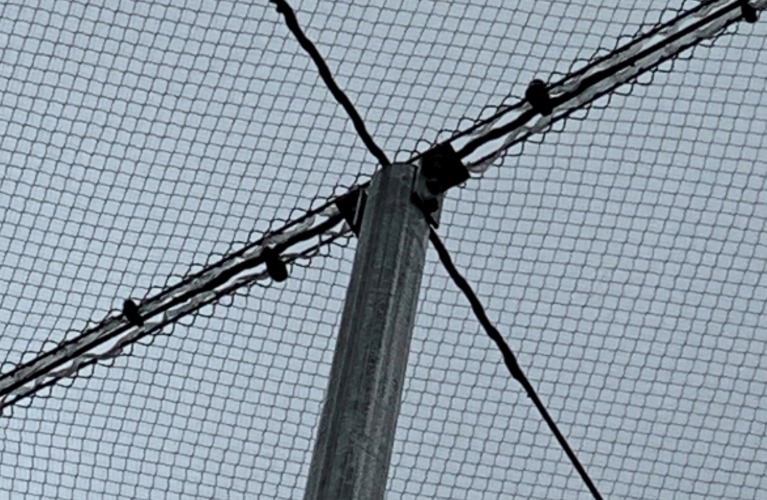

Ag-Netting Poles

Ag-Netting Poles

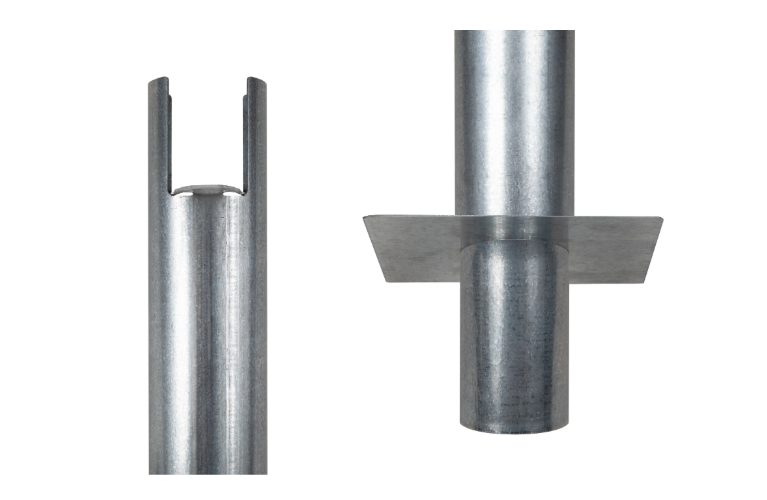

Ag-Support Post

Ag-Support Post

Ag-Support Posts are ideal for replacing broken timber posts or providing additional support for intermediate rows of Ag-Beam. Engineered for easy installation and long-term performance, it delivers a practical, labour-efficient solution for maintaining and strengthening orchard structures.

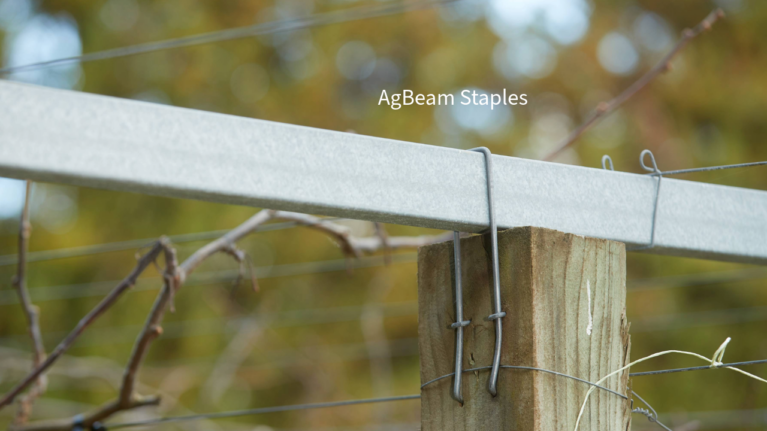

Ag-Cessories

Ag-Cessories

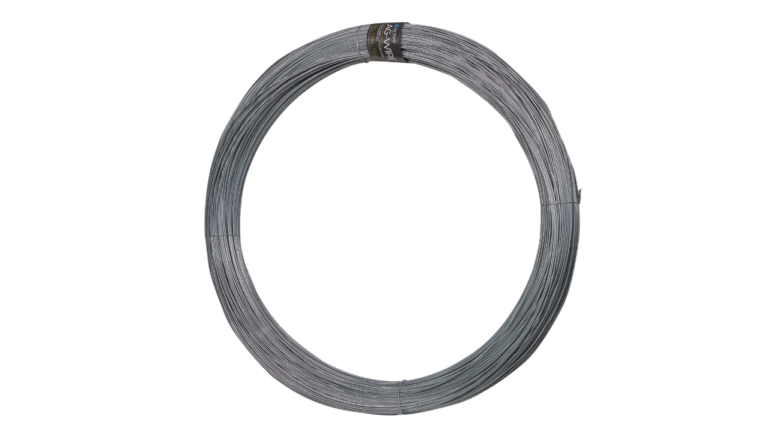

Ag-Wire

Ag-Wire

Ag-Steel™ Kiwifruit Product Specifications

Base Material	Continuously hot-dip galvanised (Galvsteel® G310)
Ag-Beam	64 x 38 x 1.15mm Standard, 68 x 38 x 1.55mm Heavy
Ag-Joiner	68 x 43 x 1.55mm x 400mm Standard, 68 x 43 x 1.85mm x 400mm Heavy
Ag-Brace Flat End	1.2m x 1.15mm and 1.85m x 1.15mm
Ag-Brace Scallop End	1.2m x 1.15mm and 1.85m x 1.15mm
Ag-Stringing Poles	31.8mm diameter, 1.6 gauge, available in 4.0m, 4.5m & 5.0m
Ag-TriPosts	63.5mm diameter, 1.15 gauge, 1.8m, 1.85m and 1.9m lengths, supplied with three 22mm diameter x 600mm long galvanized steel pins
Ag-Support Posts	63.5mm diameter, 1.15 gauge,1.8m, 1.85m and 1.9m lengths, supplied with flat ground plate
Ag-NetPoles	76.2mm diameter, in 1.55 standard gauge or 1.85 heavy gauge. 6m length, supplied with three 22mm diameter x 600mm long galvanized steel pins
Yield Strength	310MPa (BM)
Tensile Strength	450 MPa (BM)
Base Material Standard	(GS): AS/NZS 1365:1996 (R2016), AS 1397:2021
Product standard	AS 1450
Surface Finish	Z450 coating (both sides). Medium Spangle

G310 Base Material - Typical Mechanical Properties

Yield strength	Tensile strength	EI % on Lo=50mm
310 MPa	450 MPa	25

Quick answers to common questions about our products and services.

Frequently Asked Questions

What material are Ag-Steel products made from?

AgSteel products are made in New Zealand, from a high strength steel, grade 310, with a zinc coating of 450 g/m². The standard wall thickness is 1.15mm but this can vary by product.

When can I get specialist lengths run?

Industrial Tube’s standard products are rolled every four to eight weeks. Where possible, we will add specialist lengths to these rolling cycles. If you require a particular length produced, please contact our sales and production team for more information.

Can I purchase directly from Ag-Steel?

Yes we sell Ag-Steel directly to orchardist and vineyard managers, and deliver product directly to site.

We embrace building long standing relationships with our clients and are able to offer a personal service and customised product offering.

To place an order give us a call or send an email to [email protected]
