Ag-Support Post

Ag-Support Post – Steel Orchard Support Posts

Fast, reliable replacement for broken timber posts

Ag-Support Posts are ideal for replacing broken timber posts or providing additional support for intermediate rows of Ag-Beam. Engineered for easy installation and long-term performance, it delivers a practical, labour-efficient solution for maintaining and strengthening orchard structures.

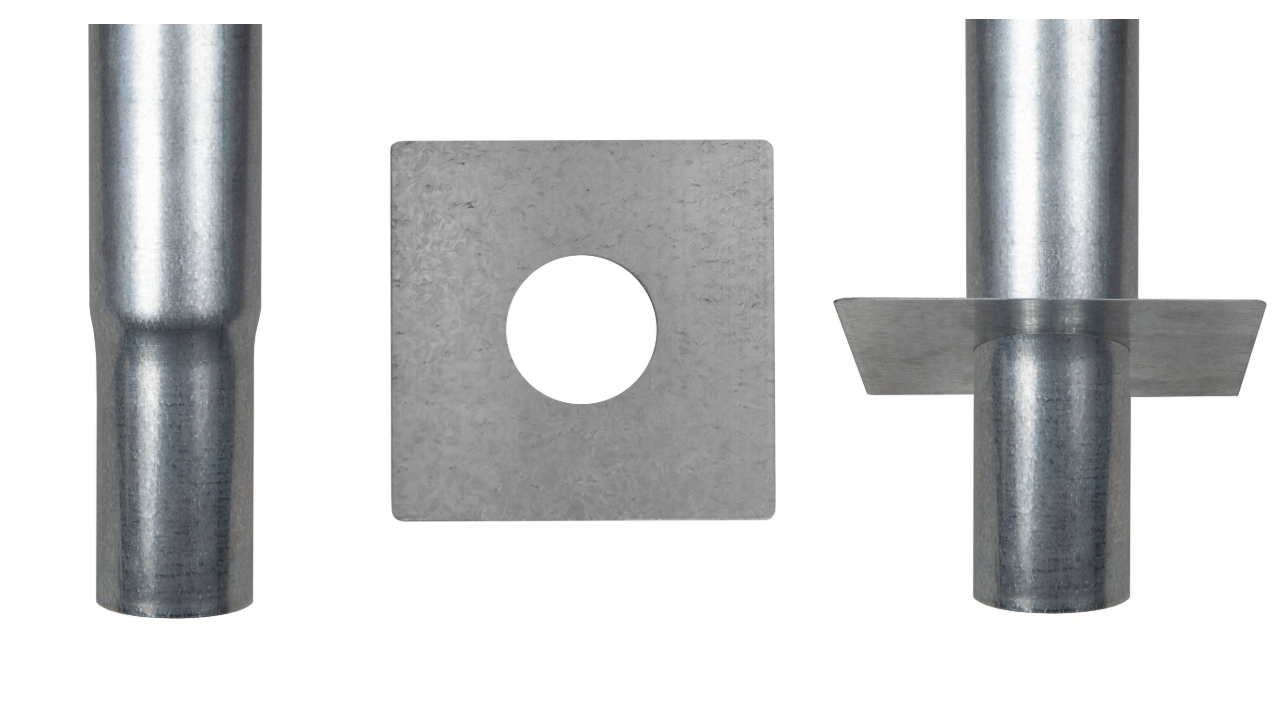

Featuring a purpose-designed ground-holding plate, Ag-Support Post prevents sinking under load and eliminates the need for heavy machinery—saving time, cost, and disruption in existing orchards.

Ag-Support Post Sizes

Ag-Support Post Products

Why choose Ag-Support Post?

Ideal for repairs and immediate support

Ag-Support Post is well suited to replacing damaged or failed timber posts, as well as providing reliable support for intermediate rows of Ag-Beam where additional strength is required.

Learn more

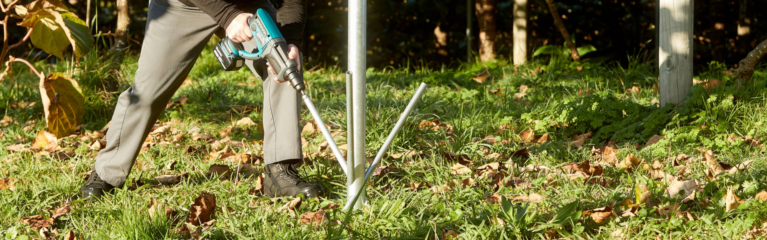

Easy, one-person installation

Ag-Tripost requires no heavy machinery and can be installed by a single person using a battery-powered hammer drill—making it ideal for quick upgrades and retrofits.

Learn more

Recessed Ag-Beam fixing

Ag-Support Post has a recess cut into the top of the post to securely hold the Ag-Beam in place. This removes the need for staples and prevents the beam from rolling off the post—improving safety and installation efficiency.

Learn more

Superior weather and corrosion protection

A Z450 galvanised coating delivers exceptional corrosion resistance, ensuring long-term performance in demanding orchard environments.

Learn more

Proven quality & reliability in orchard environments

Purpose-built for orchard and vineyard support systems, the Ag-Steel range is manufactured from high-grade steel 310 steel (minimum 310 MPa) ensuring compatibility and consistent performance across the Ag-Steel system, delivering dependable structural strength season after season.

Learn more

Ag-Support Post Sizes

Total Post Length (measured from underside of AgBeam to ground holding plate)	Diameter mm	Guage mm
1.8m	63.5mm	1.15
1.85m	63.5mm	1.15
1.9m	63.5mm	1.15

New Zealand made for long-term orchard performance

Designed and manufactured in New Zealand by Ag-Steel, a division of Industrial Tube Manufacturing, Ag-Support Posts combines local expertise with proven steel manufacturing standards. Built for efficiency. Designed to last.

Included in the post is our Wire Retaining feature, which provides a better way to attach Leader or Irrigation Wires to your posts. Positioned 150 mm below the AgBeam seat, it securely holds 2.5 mm or 3.15 mm wire, making installation faster, easier, and more reliable.

Built for quick fixes and long-term strength

Ag-Support Post delivers a faster, cleaner, and more durable alternative to timber posts—helping orchardists maintain structural integrity with minimal effort and maximum confidence.
