Kiwifruit Product Range

30 years trusted by New Zealand growers


Ag-Steel™ Kiwifruit Product Range

We offer systems that do exactly what they’re designed to do — supporting strong vine growth, protecting your orchard investment, and helping produce the premium kiwifruit New Zealand is known for.

The Ag-Steel™ range is manufactured in New Zealand using pre-galvanised GS310 tube, featuring a Z450 coating with external weld seam zinc repair to ensure coating continuity. With a smooth, consistent surface finish and excellent formability, it’s purpose-built for outdoor, corrosion-prone orchard environments where long-term durability truly matters.

When you choose Ag-Steel, you’re choosing more than a structure. You’re choosing a partner who understands what’s at stake — your land, your yields, and the future of your orchard.

Proudly New Zealand made. Gold-standard sustainably manufactured.

View our AgSteel Kiwifruit product range

Kiwifruit Product Solutions

Ag-Beam™

Ag-Beam™

Ag-Brace

Ag-Brace

Ag-Stringing Poles

Ag-Stringing Poles

Ag-Tripost

Ag-Tripost

Ag-Netting Poles

Ag-Netting Poles

Ag-Support Post

Ag-Support Post

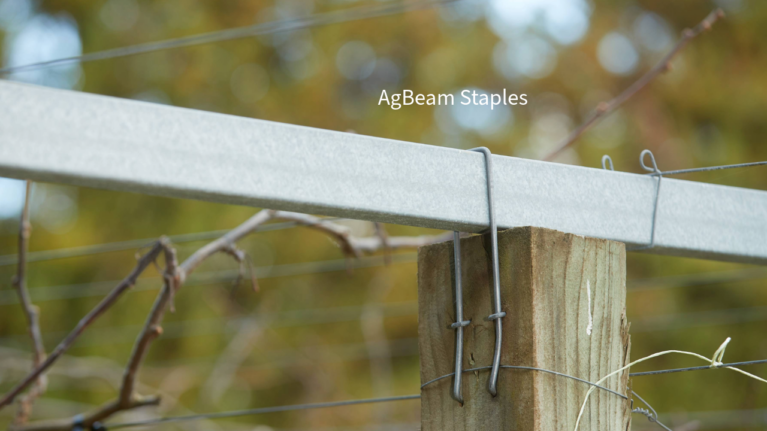

Ag-Cessories

Ag-Cessories

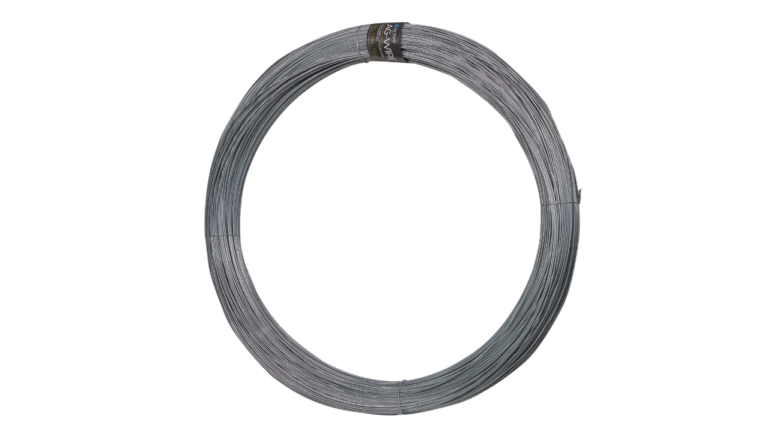

Ag-Wire

Ag-Wire

Ag-Steel™ Kiwifruit Product Specifications
Base Material Continuously hot-dip galvanised (Galvsteel® G310)
Ag-Beam 64 x 38 x 1.15mm Standard, 68 x 38 x 1.55mm Heavy
Ag-Joiner 68 x 43 x 1.55mm x 400mm Standard, 68 x 43 x 1.85mm x 400mm Heavy
Ag-Brace Flat End 1.2m x 1.15mm and 1.85m x 1.15mm
Ag-Brace Scallop End 1.2m x 1.15mm and 1.85m x 1.15mm

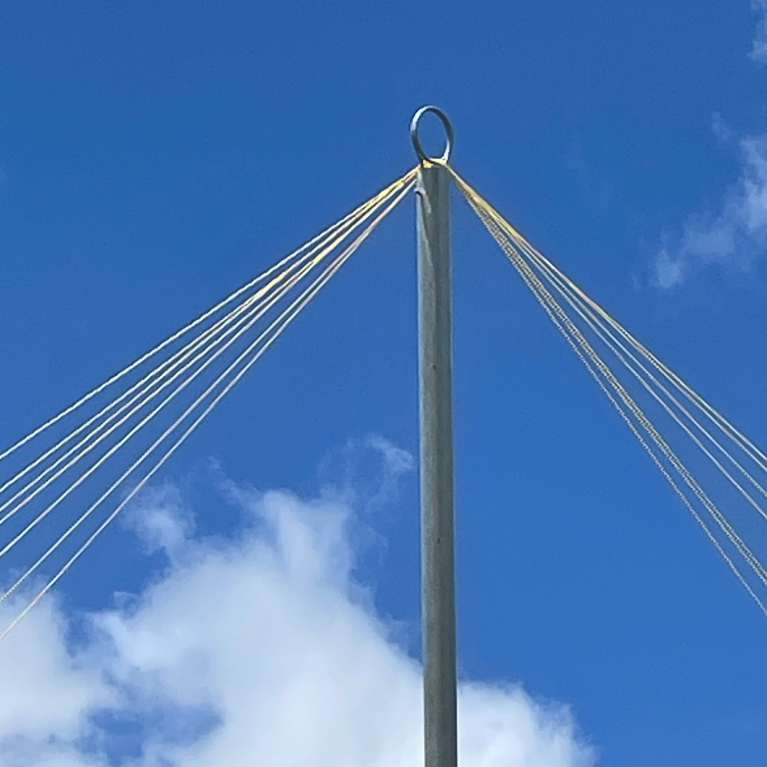

Ag-Stringing Poles 31.8mm diameter, 1.6 gauge, available in 4.0m, 4.5m & 5.0m

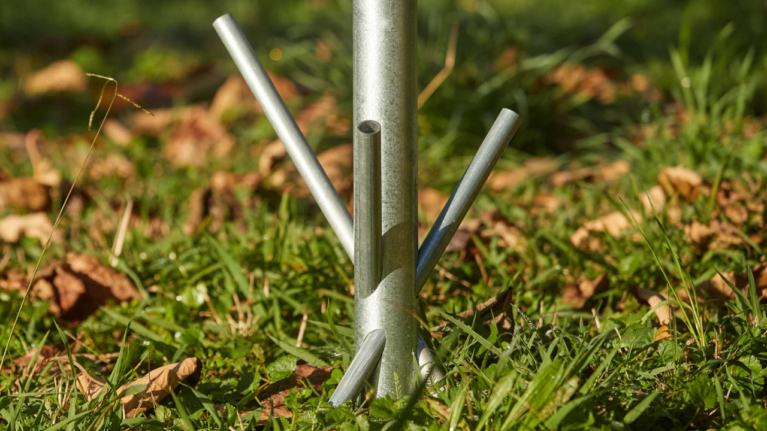

Ag-TriPosts 63.5mm diameter, 1.15 gauge, 1.8m, 1.85m and 1.9m lengths, supplied with three 22mm diameter x 600mm long galvanized steel pins

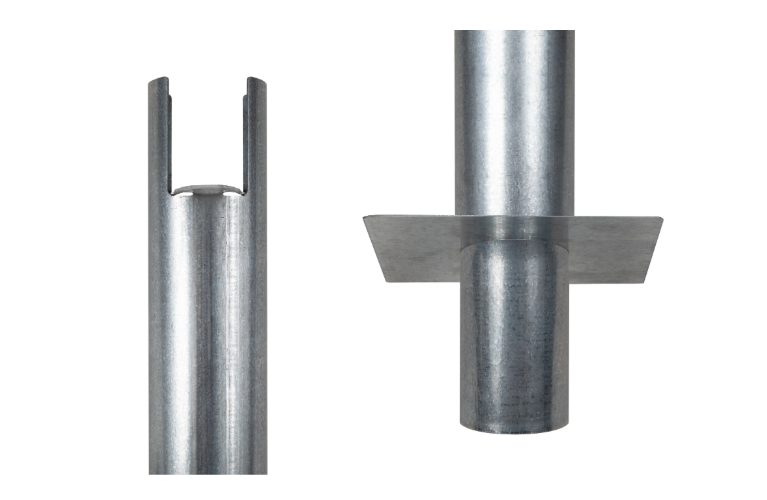

Ag-Support Posts 63.5mm diameter, 1.15 gauge,1.8m, 1.85m and 1.9m lengths, supplied with flat ground plate

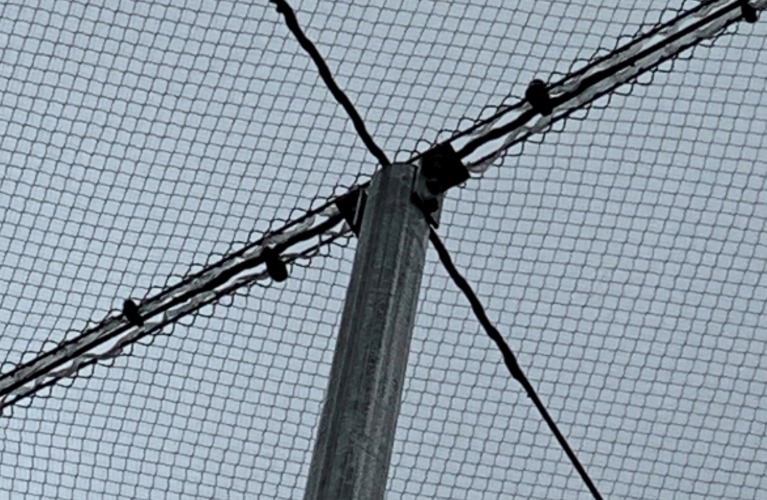

Ag-NetPoles 76.2mm diameter, in 1.55 standard gauge or 1.85 heavy gauge. 6m length, supplied with three 22mm diameter x 600mm long galvanized steel pins
Yield Strength 310MPa (BM)
Tensile Strength 450 MPa (BM)
Base Material Standard (GS): AS/NZS 1365:1996 (R2016), AS 1397:2021
Product standard AS 1450
Surface Finish Z450 coating (both sides). Medium Spangle
G310 Base Material - Typical Mechanical Properties
Yield strength Tensile strength EI % on Lo=50mm
310 MPa 450 MPa 25

FAQ

What material are Ag-Steel products made from?

AgSteel products are made in New Zealand, from a high strength steel, grade 310, with a zinc coating of 450 g/m². The standard wall thickness is 1.15mm but this can vary by product.

When can I get specialist lengths run?

Industrial Tube’s standard products are rolled every four to eight weeks. Where possible, we will add specialist lengths to these rolling cycles. If you require a particular length produced, please contact our sales and production team for more information.


Let’s Talk Kiwifruit Growing

Blue Scope NZ Steel
NZ Made
Sustainable Stainless
Blue Scope NZ Steel
NZ Steel Galvanised

Looking for a customised product?

Let’s chat. We offer design, prototyping, and production — all managed in-house for precision and quality control.
